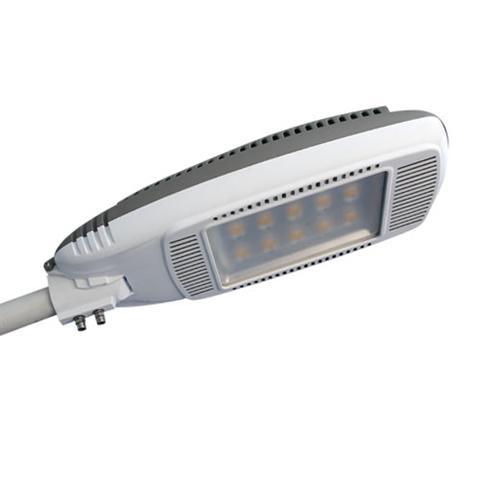

LED STREET LIGHT LD-SL04-XX120

MOQ ： piece

Lead Time ： Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C,T/T

Departure Port : FOB SHENZHENG OR SHANGHAI

Product details

Supply Ability

Warranty(Year)：1 Year

Packaging & Delivery

Length：25 cmWidth：12 cm
Height：5 cm
Packaging：1 piece

Product Specifications

Product Description

1、Novel structure, perfect sealing protection.
2、Excellent performance of heat dissipation: we adopt the
      technique of dual dispersion of heat by aluminum die-casting
      shell cooling fin and cavity, and effectively reduce the
      temperature of high-power LED.
3、Ultra-long life time: the light attenuation is below 8% within
      10,000 hours, the life time is over 50,000 hours.
4、Energy saving significantly: comparing to the sodium lamps
      at the same illuminance, can save more than 60% energy.
5、Green and environmental protection: not containing nocuous
      matter, such as haloid and hydrargyum.

APPLICATION:.
It is widely applied in diversified city lighting, not only in main artery, but also in secondary artery.

Model number：LD-SL04-XX120
Rated Watts (W)	120
Height of the pole (m)	10
Center illuminance (Lx)	≥30
Average illuminance (Lx)	≥20
The area of illuminance(diameter)(㎡)	10×30
Input voltange range (V)	AC90～265 50/60Hz
Efficiency of power supply	≥88%
Power factor	≥0.9
Normal working temperature (℃)	-40～60
IP rating	IP65
Color temperature (K)	2500～10,000
